All of NEW and upcoming x21/x22 NAS models coming in 2020/2021

Luka Manestar

11 Nov 2020 — 7 min read

This will be a post for all the new and upcoming models that I will update with data sheets and specs. Considering that Synology is pushing a lot of new models, I felt it would be more clean to separate these type of info into a separate article then to keep them inside a dedicated DS1621xs+ article.

Info on DS1621+ and DS1621xs+ will remain in a dedicated article here, as well as the x20 model lineup here.

UPDATE 05/05/2021 - Added section for the upcoming refresh of the current models: DS2419+II, DS3617xsII, DX1215II

UPDATE: 23/04/2021 - Added datasheet links for RS2421/RP+ and RS2821RP+

UPDATE: 28/01/2021 - Added tech specs for RS3621RPxs, RS3621xs+, RS4021xs+

UPDATE: 24/01/2021 - RS2421+ and RS2821+ - added specifications for the upcoming models

UPDATE: 14/01/2021 - RS1221+/RS1221RP+ - datasheet link and tech specifications have been added

UPDATE: 06/01/2021 - Added announcement for the upcoming new 12 and 16 bay models. RS3621RPxs, RS3621xs+, RS4021xs+.

UPDATE: 22/12/2020 - RS1221+/ RS1221RP+ specifications have been updated

UPDATE: 10/12/2020 - DS1821+ infromation on the Synology global site, aded more details including the datasheet (ENG)

UPDATE: 20/11/2020 - DS1821+ information on the TW Synology site - added more details including the datasheet (TW)

UPDATE: 10/11/2020 - Another 8 bay AMD based NAS is here, DS1821+. More details below

UPDATE: 05/10/2020 - New upcoming RS1221+ and RS2421+ NAS are coming. More details below

DS1821+

Tech spec document: https://ln.blackvoid.club/ds12821plus

Just like the new DS1621+, looks like we are getting another AMD Ryzen V1500B based NAS but this time and 8bay upgrade to the familiar DS1819+. This might very well be the last model we will see before the end of the year

Some hardware specifications about the upcoming model:

AMD Ryzen V1500B
2.2Ghz 64-bit x86 Architecture
Embedded Ryzen SoC Design
4GB DDR4 ECC SODIMM Memory (Max 32GB)
8 SATA Media Bays (supporting 3.5” and 2.5″ drives)
2x M.2 NVMe Slots for cache (supporting up to 2280 NVMe)
4x 1Gbe RJ45
PCIe Gen 3 x8 Slot for Expansion Cards
2x eSATA ports to connect 2x DX517
4x USB 3.2 Gen 1 (5Gbps, 1 at the front, 3 at the back)

In case you want 10G, you can add a card

Reason why this model is called 1821, a total of 10 more bays can be added

RS1221+/RS1221RP+

Tech spec document: https://ln.blackvoid.club/rs1221plus

New 8bay half size rack size model that will probably come out in January of 2021. Both unit are 298mm (RS1221+) and 399mm (RS1221RP+) in depth, so they will be a perfect fit for a small rack enclouser.

These models have also adapted the new AMD V1500B CPU, the same one present in 1821+ as well as in 1621+, so at the moment we have 4 NAS units (all from "+" segment) running with the new CPU architecture.

Units are 10G ready via PCIe SFP+ and they provide 4x1G lan ports on the back as well. In case you want cache support you can also use the PCIe expansion by installing M2D20 or E10M20-T1 adapter cards to get 10G and NVMe support as well.

General specifications are:

AMD Ryzen V1500B
4-core 2.2 GHz
Hardware Encryption Engine (AES-NI) YES
4GB DDR4 ECC SODIMM
Maximum Memory Capacity 32 GB (16 GB x 2)
Maximum Drive Bays with Expansion Unit 12 (RX418 x 1)
Hot Swappable Drive YES
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.2 Gen1 Port x2
eSATA Port x1 (for expansion)

8 Fans
9 PCIe Expansion Slot
10 Reset Button
11 USB 3.2 Gen 1 Ports
12 1GbE RJ-45 Ports
13 Expansion Port
14 Console Port
15 Power Port(s)
16 PSU Indicator & Alert Off Buttons

RS2421+

Tech specs link: https://ln.blackvoid.club/rs2421plus

Another full size 12bay rack model (with a single expansion support for a total of 24 bays). Bellow are HW specs that will be confirmed with upcoming data sheets:

RS2821RP+

Tech specs links: https://ln.blackvoid.club/rs2821plus

16 bay AMD CPU rack model (with a single expansion support for a total of 28 bays). Bellow are HW specs that will be confirmed with upcoming data sheets:

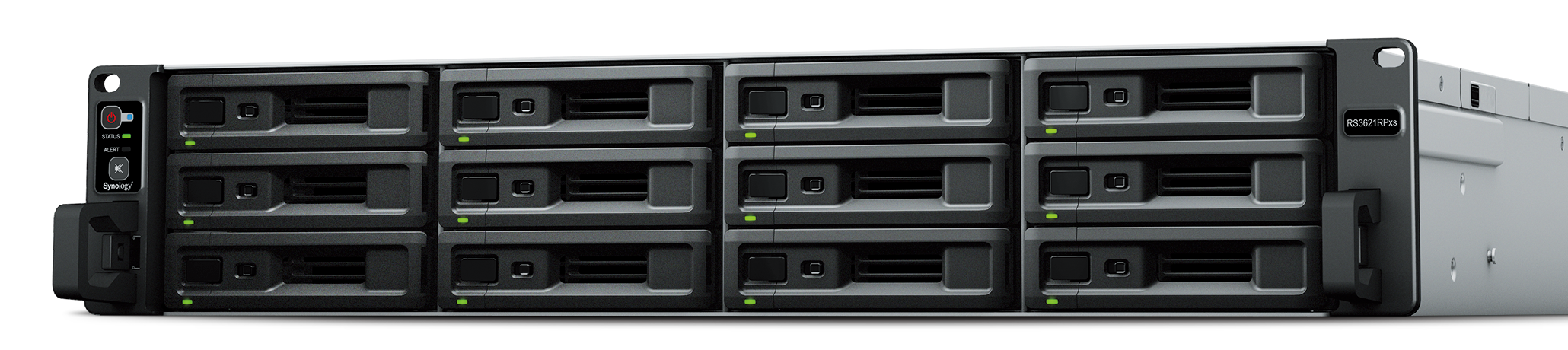

RS3621RPxs

New 2U 12 bay business model as a succesor to the 2017 model.

Tech spec document: https://ln.blackvoid.club/rs3621rpxs

RS3621xs+

New 2U 12 bay business model as a succesor to the 2017 model.

Tech spec document: https://ln.blackvoid.club/rs3621xsplus

RS4021xs+

New 3U 16 bay business model as a succesor to the 2017 model.

Tech spec document: https://ln.blackvoid.club/rs4021xsplus

DS2419+II

The current DS2419+ Mark II upgrade model. No apparent change regarding this 12 bay non-rack model when it comes to specifications (apart from a stronger PSU).

Tech specs document: https://ln.blackvoid.club/ds2419plusII

At the moment, the model is only visible on the TW version of Synology.com

DS3617xsII

The current DS3617xs Mark II upgrade model. No apparent change regarding this 12 bay non-rack model when it comes to specifications (apart from a stronger PSU).

Tech specs document: https://ln.blackvoid.club/ds3617xsII

At the moment, the model is only visible on the TW version of Synology.com

DX1215II

The current DX1215 Mark II upgrade model. No apparent change regarding this expansion when it comes to specifications (apart from a stronger PSU). Will add official specs when they come in english.
